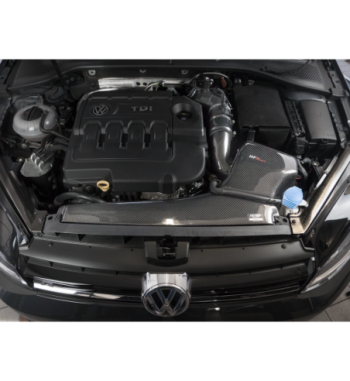

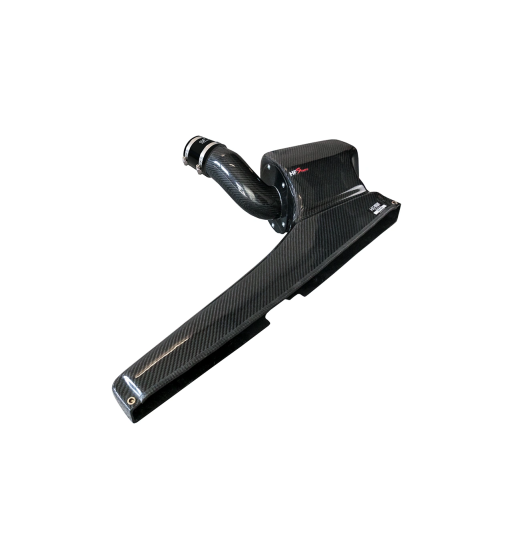

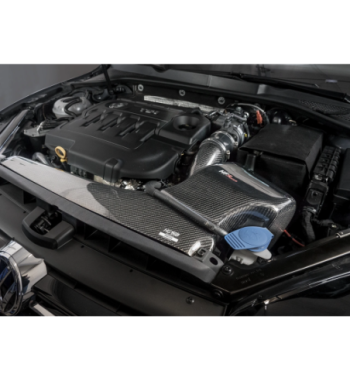

HFI Gen.3 carbon intake system – VAG 2.0 TDI EA288

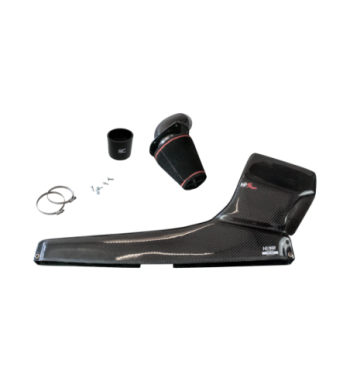

Includes a Gen.3 carbon airbox, Pipercross DRY HF500, SF-Hoses silicone connector to the original MAF sensor, screws and clamps. Replaces the airbox and front-panel intake collector. The additional air deflector is not included.

Includes a German §19.3 parts report. Vehicle and installation must meet its conditions; comply with the requirements in the country of registration.

Auxiliary-heater pipes at the front panel require modification; installation is not plug-and-play. The manufacturer also lists Passat B8, Arteon 3H and Superb 3V as compatible, explicitly WITHOUT a parts report.

Applications in the manufacturer’s parts report: Audi A3 8V (e1*2007/46*0607*); VW Golf VII AU (e1*2007/46*0623*) / AUV (e1*2007/46*0627*); Seat Leon 5F (e9*2007/46*0094*); Skoda Octavia 5E (e11*2007/46*0244* / e11*2007/46*0243*). CRMB/DCYA/DEJA/CRLB: 110 kW; CUNA: 135 kW, 3500–4000 min⁻¹, 1968 cm³.

Use the vehicle selector to narrow the search. Check the engine code, vehicle version and approval conditions before ordering. Brand: HF-Series, part of HG-Motorsport GmbH.

Part number: HGHFISV04G3-TD
