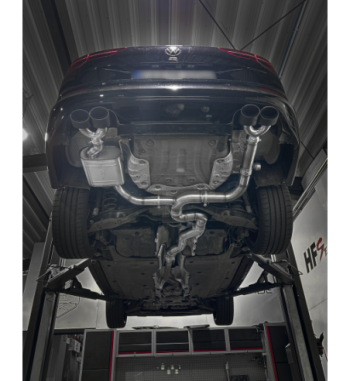

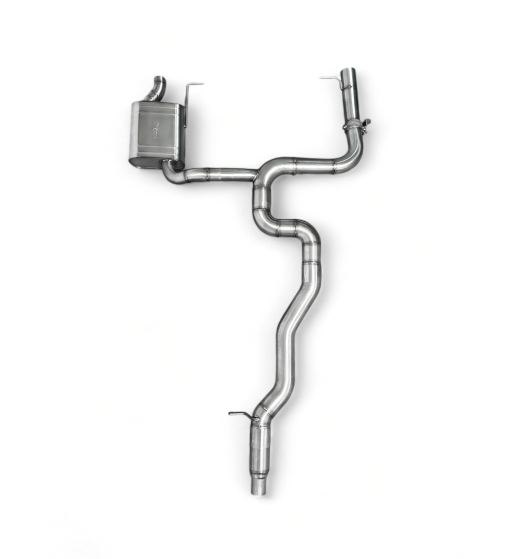

This EGO-X exhaust system for the Golf 8 R Variant / Cupra Leon KL ST 4WD is handmade in the TIG welding process and consists of absorption silencers, without chambers. The tube diameter is 3.5 inches (89mm).
The technical details:
- Tube diameter: 3.5" (89mm)
- Pipe material: stainless steel
- Absorption silencer: handmade in-house
- from catalyst
- TIG welded
Scope of delivery:
- exhaust system with catalytic converter
- Mounting material
- With electric exhaust flap. SBS motor included.
- Bull-X Tronic control unit (when the ECE variant is selected)
With ECE licence*:
*Valid only for the following selection in the field "Selection of operating mode": Bull-X Tronic control unit (With ECE licence)
This flap exhaust system has an ECE(ECE) approval, so it can be moved on the road without registration in your vehicle documents.
Attention: The exhaust systems with ECE are not affected by the "flap ban" and may continue to be used completely legally in road traffic.
During the ride, you can decide whether you want to drive in comfort or sport mode. If your vehicle is equipped with a driving profile selector, it can be controlled via this.
For vehicles without driving profile selection, this can be controlled via a supplied pushbutton. The pushbutton indicates whether the door is currently open (light off) or closed (light on) with its LED illumination.
The control unit automatically closes the flap in all areas required for ECE regulation, regardless of which mode you are driving in.
In general, the Bull-X Tronic offers two control options:
- Sport (Dynamic, Race): In the approved scope of the ECE regulation, the flap is always open. When stationary and in the range of 20-80km/h, the flap is always closed.
- Comfort mode: the flap is always closed, but opens within the approved scope of the ECE regulation during driving from 75% of the throttle position open.
For more information, please see our info video.
Without ECE approval*:
*Applies to the following 3 options in the field "Selection of operating mode": Exhaust valve control via switch / Exhaust valve control via remote control / Bull-X Tronic "Race" Can-Bus control unit
If the vehicle is equipped with a driving profile selector (sport button), it can also be controlled via this.
For vehicles without driving profile selection, this can be controlled via a supplied pushbutton.
The pushbutton indicates whether the door is currently open (light off) or closed (light on) with its LED illumination
If you have purchased the Bull-X Tronic control unit, it is still possible to open the flap when stationary, but the control unit regulates the exhaust flap in driving mode according to ECE guidelines.
In general, the Bull-X Tronic offers two control options:
- Sport mode (Dynamic, Race)
- Comfort mode (flap opens from 75% throttle position)
The variant "without ECE licence" is not permitted for use on public roads - use only for racing purposes!
Attention! The exhaust system offered is not permitted in the area of the road traffic registration regulations! With the ECE Bull-X Tronic control system and the EC catalytic converter, you can legally move on public roads with your vehicle. The use of all other controls and/or catalysts is intended for racing purposes only. If, despite our warning, you install an exhaust system WITHOUT ECE approval, you will be liable for criminal charges. Imminent consequences may include: expiration of the operating license, decommissioning of the vehicle, reporting for tax evasion, as well as possible investigations by the environmental authority.
| Version | Vehicle / technical fitment |
|---|---|
| HGBXAGAVAG38-8RV | Manufacturer Type MKB Displacement Rated power; Volkswagen Golf 8 R Variant DNFG /DNFF 1984cm³ 235/245kW / 320/333PS; Cupra Leon KL Sportstourer DNFB 1984cm³ 228 kW / 310PS |
