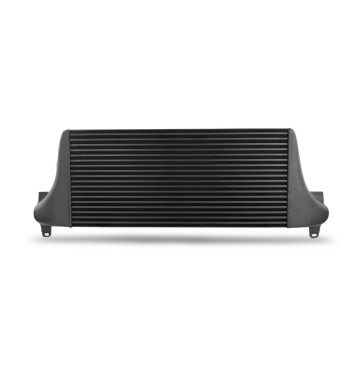

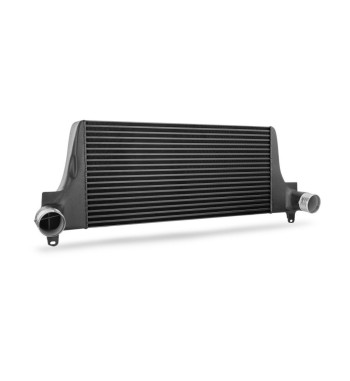

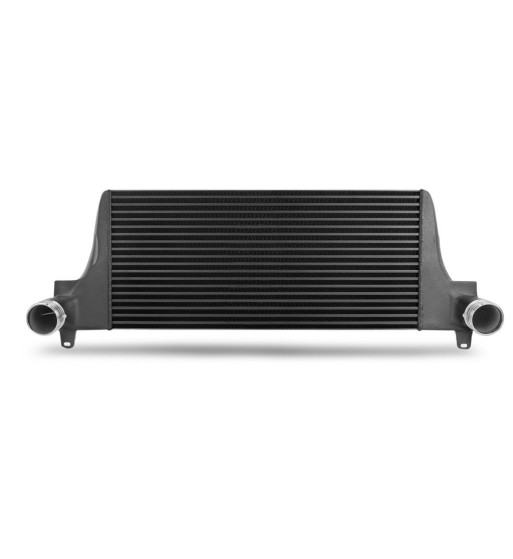

Wagner Tuning Competition Intercooler for VW T5 2.5 TDI – 229% more volume & plug & play
Experience maximum performance for your VW T5! With the Wagner Tuning Competition high-performance intercooler, you can take the performance of your VW T5 2.5 TDI to the next level. This innovative upgrade is the ideal solution for optimizing engine cooling, minimizing back pressure, and achieving a massive increase in performance. Experience the power your VW bus deserves.
Why our Competition Intercooler is the best choice for your VW T5:
- Massive performance increase thanks to 229% more charge air volume: With mesh dimensions of 670 mm x 302 mm x 75 mm and a total volume of 15.2 liters, this intercooler offers an impressive 40% larger flow area (2023 cm² vs. OEM 1440 cm²) and a sensational 229% more charge air volume compared to the factory part. The result: significantly more cool, dense air for your engine and a noticeable increase in performance.
- Optimal airflow & minimal back pressure: The specially developed Competition high-performance mesh maximizes cooling properties, even under the most demanding conditions. The flow-optimized free-form end boxes made of cast aluminum with integrated air baffles ensure even filling of the intercooler and minimize back pressure. The original click connections have been eliminated and the connection diameters at the inlet and outlet have been increased to a generous Ø65 mm, which further optimizes the airflow.
- High quality and easy installation: This kit is a 1:1 replacement and allows for easy installation at the original mounting points. The kit weighs only 8.9 kg, making it an efficient and lightweight solution. Included reinforced silicone hoses, an aluminum adapter, and mounting hardware facilitate installation. Like all our products, this intercooler is subject to strict quality control.
Technical details & vehicle compatibility:
Wagner Tuning Competition intercooler:
- Dimensions: 670 mm x 302 mm x 75 mm
- Cooling surface: 2023 cm² (+40% vs. OEM 1440 cm²)
- Intercooler volume: 15.2 liters (+229% vs. OEM 4.6 liters)
OEM intercooler:
- Dimensions: 570 mm x 191 mm x 60 mm
- Cooling surface: 1440 cm²
- Charge air volume: 4.6 liters
- Weight: 8.9 kg
- Connection diameter: Inlet and outlet Ø65 mm
- Installation: Plug & Play (1:1 replacement)
Suitable for the following models:
- VW T5.1 2.5 TDI (96 kW/131 hp) 2003-2009
- VW T5.1 2.5 TDI (128 kW/174 hp) 2003-2009
Note: Vehicles with engine codes AXD, AXE, BLJ, BRR, BRS must have the charge air pipe (7H0 145 955 L) on the driver's side converted.
Part number: 200001093
Kit comes with:
- 1x Wagner Tuning intercooler
- 2x silicone hoses
- 1x aluminum adapter
- 1x mounting material
- 1x installation instructions
Not approved for road use under the German StVO.
